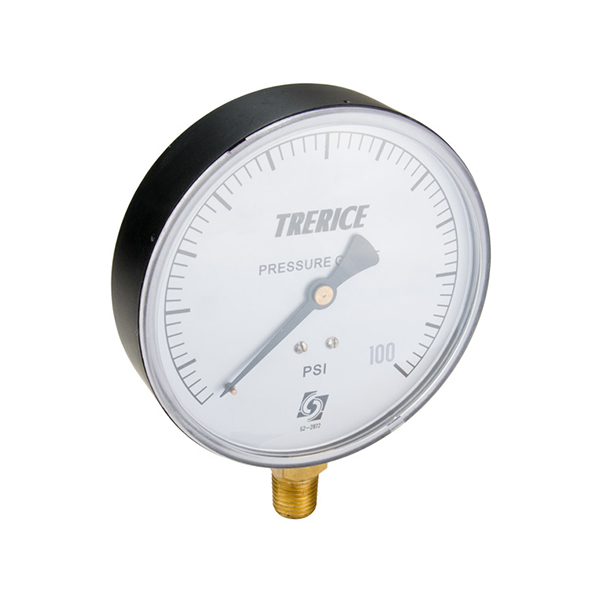

TRERICE 99301621 4.0" GAUGE 0-30 PSI 1/4" BOTTOM MT

This 800B Utility Gauge by Trerice is designed for general pressure indication applications. It’s an economical solution that has dependable service. The Wetted parts on this unit are the bronze tube and brass socket. The case is stem-mounted and flangeless, it is constructed of drawn steel, with a black finish. The window is acrylic. The dial face is made of aluminum, with a white background with black graduations and markings. (Note: This is not the liquid filled model)

Specs:
• Model 800B
• 4" dial size
• ¼" NPT connection size
• Lower connection location
• Unit of measurement: psi
• 090 Range Code
• 0 to 30 psi
• 5 figure intervals
• 0.5 minor divisions
• Max temperature 180°F (82°C)
• ±1.6% accuracy

EC Part Number: #52940
Manufacturer: Trerice
