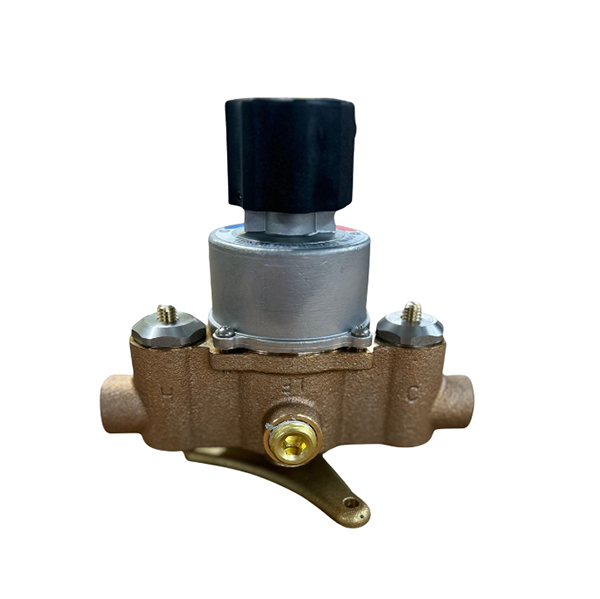

LEONARD VALVE TM-26-LF 3/4” THERMOSTATIC MIXING VALVE

This 3/4-inch thermostatic mixing valve is from Leonard Valve. It is a DURA-trol® solid bi-metal thermostat directly linked to valve porting to control the intake of hot and cold water as well as compensate for supply temperature or pressure fluctuations. Cannot be damaged by extreme temperatures. The minimum flow capacity is 1 GPM. Has integral combination checkstops and wall support. Internal parts are made of lead-free bronze, brass, and stainless steel. Has a color-coded dial for hot and cold with directional indicators. Maximum operating pressure is 125 PSI. The adjustable high temperature limit stop is set for 120ºF. Features a locking temperature adjustment knob. Leonard Valve model number TM-26-LF.

EC Part Number: #57542
Manufacturer Number: TM-26-LF
Manufacturer: Leonard Valve
