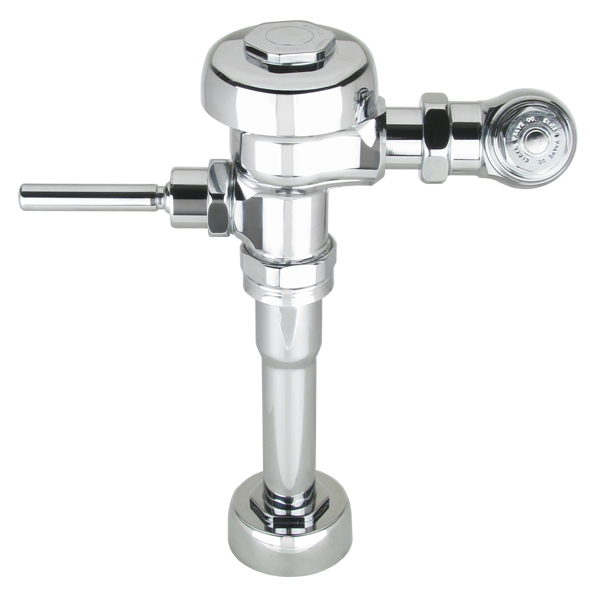

TEKS 180-XL-REGAL REGAL URINAL FLUSHOMETER 1-1/4 VB 3.0 GPF

The Regal 180 XL Flushometer by Sloan has a 3.0 GPF (works with 3.5 GPF urinals) and 1-¼" vacuum breaker. This sloan flushometer is designed for use on 1-¼" top spud urinals. This model has a flush cycle of 3.0 and is considered a conventional unit because of its flush volume. We also have this unit available with other flush volumes starting at 0.5 GPF. This unit is quiet, exposed, diaphragm type, with a chrome plated finish over its high copper, low zinc brass casting. It is a manual activation single flush flushometer with a non-hold ADA compliant metal oscillating handle. Maintenance of the correct flush volume is aided by Para-Flo™ technology and a control stop plug. The tailpiece is adjustable. The handle packing, stop seat, and vacuum breaker are molded out of PERMEX™, which is a rubber compound that resists Chloramine. The manual activation and single flush mechanism of the Regal 180 flushometer makes this unit easy to maintain and service.

Specs:
• 3.0 GPF
• 1-1/4" Vacuum Breaker
• 1" Stop

EC Part Number: #08451
Mfg No.: 180-XL-Regal
Mfg: Sloan Valve Co
