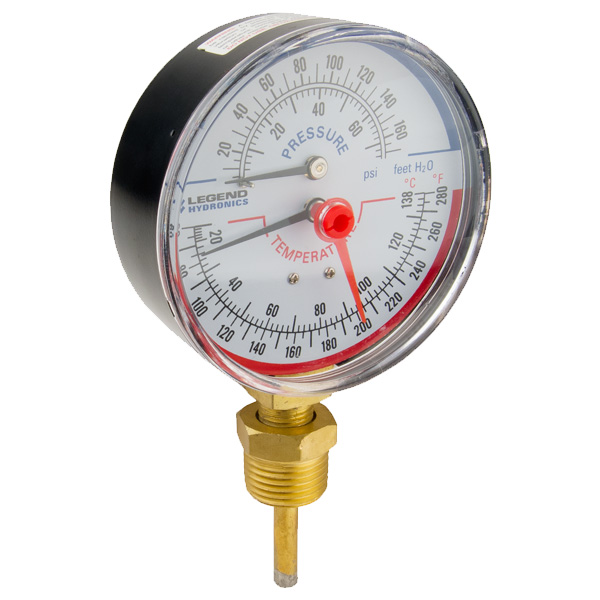

LEGEND VALVE T-825 1/2” MNPT BOTTOM MOUNT TEMP & PRESSURE GAUGE (60-280°F)

This T-825 Bottom Mount Temperature and Pressure Gauge is from Legend Valve. The gauge has a steel body that is painted black. It has a bronze temperature probe and a brass threaded adapter. The 3" gauge face has a plexiglass lens. The dial face has a white background with black graduations and markings. The dial face can also read both temperature (red) and pressure (blue).

Specs:
• Temperature range of 60-280ºF (15-138ºC)
• ± 3% temperature accuracy of full scale
• Pressure range of 0-75 psi (0-174 feet H2O)
• ± 3% pressure accuracy of full scale
• ½" MNPT connection
• Extended Probe

EC Part Number: #89072
Mfg No.: 800-675
Mfg: Legend Valve
