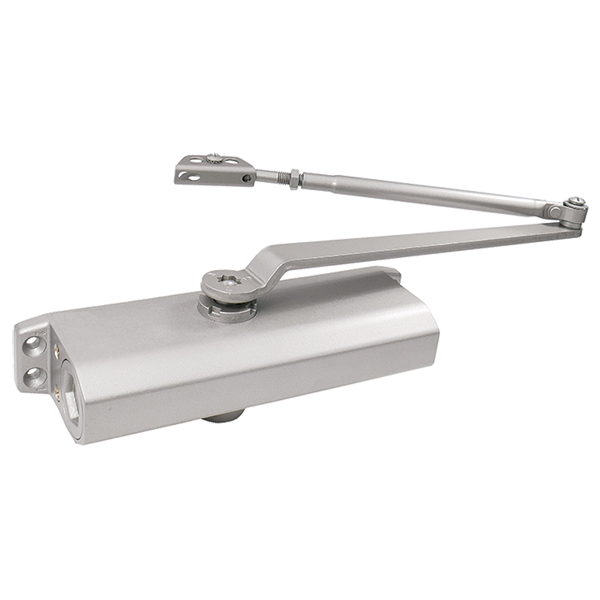

INTERNATIONAL DOOR CLOSER 14033 PARALLEL HOLD-OPEN ARM DOOR CLOSER – SATIN ALUM

This parallel hold-open arm door closer with back-check is from International Door Closer. It is a size 4 door closer with an interior door size of 42 inches and an exterior swing-in of 32 inches and swing-out of 36 inches. Door closer has a satin aluminum finish. International Door closer model number 1884-P-AL.

Measurements for Size 4:
• Length of Closer: 9-3/4"
• Horizontal Mounting Holes: 9-1/16"
• Vertical Mounting Holes: 3/4"
• Interior Door Size: 42"
• Exterior Door Size Swing-Out: 36"
• Exterior Door Size Swing-In: 32"

Features:
• Two adjustment valves: Closing and latching speeds controlled by separate regulation valves, adjustable after installation.
• Non-handed for standard, top jamb or parallel arm installation.
• Stable hydraulic door check fluid for any climatic operation and consistent lubrication.
• Hold open arms are adjustable for holding from 90° to 180°.
• Rack and pinion mechanism contained in a high tensile precision cast aluminum housing assures the highest quality.
• Narrow design permits installation on most modern glass and aluminum doors without adaptors.

EC Part Number: #14033
Mfg No.: 1884-P-AL
Mfg: International Door Closer
