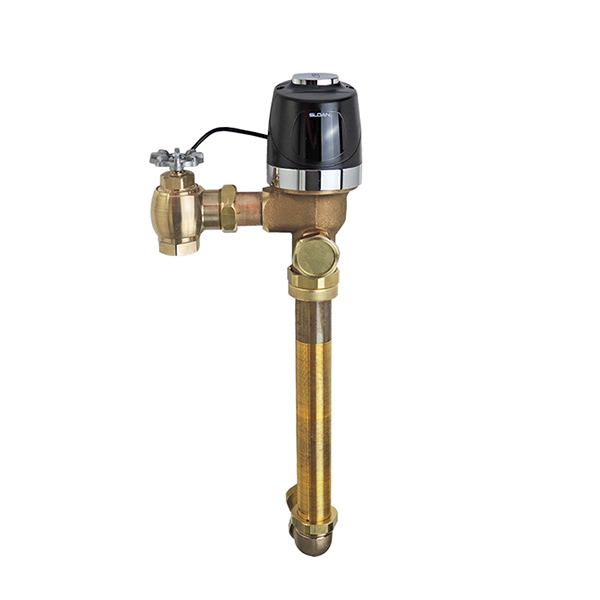

SLOAN 8603-ESM-1.6-PRGM-A04-2ACT 5 MIN 60 MIN LO 1.6 GPF RB CONCEALED CLOSET PWT FLUSHOMETER L/SENSOR PROGRAM 4 STD TOUCH BUTTON

This 1.6 GPF Rough Brass Concealed Closet PWT Flushometer is from Sloan. For use in prisons or other facilities where you need to regain control of your water usage. Features all of the performance benefits of standard concealed, diaphragm model flushometers with the added durability to withstand rough environments. Intended for use with stainless steel water closet fixtures from Acorn, Bradley, Metcraft, and other manufacturers. Unit is factory set at 2 Activations in 5 minutes, with a 60 minute Lockout Time. Flushometer is battery powered. Has a Standard Touch Button, and a 3/4-inch Vacuum Breaker. Sloan model number 8603-ESM-1.6-PRGM-A4-STD, code number 3250193.

Specs:
• Flush Volume: 1.6 GPF
• Finish: Rough Brass
• Power Type: Battery
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Program: A4
• Touch Button: Standard

Features:
• 1.6 GPF flush volume to match with existing fixtures and meet water-efficiency goals
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Vandal-proof, push-button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
• Adjustable tailpiece accommodates various installation height
• High chloramine resistant PERMEX synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Battery powered
• Programmed for 2 activation in 5 minutes, 60 minutes lockout; Program is field changeable to 15, 30, 45 minute lockouts and dorm option

Click here to learn more about Sloan’s PWT (Programmed Water Technologies) System

EC Part Number: #48992
Manufacturer Number: 8603-ESM-1.6-PRGM-A4-STD
Manufacturer: Sloan
